How we built a tiny home theater PC with Intel's NUC

Intel's "Next Unit of Computing" platform provides everything you need for a competent entertainment PC in an extremely small package.

Full-featured PCs are getting smaller every day, and Intel's new "Next Unit of Computing," or NUC, is yet another example of the ever-shrinking personal computer.

At 4.6 by 4.4 by 1.5 inchesabout the size of a very small box of chocolatesthe NUC contains a Core i3 processor and two SODIMM memory slots, and can be upgraded with both a Wi-Fi card and mSATA SSD internally. I was most intrigued by Intel's DC3217BY model, which includes an HDMI as a video connector and a Thunderbolt port for storage.

[ FREE DOWNLOAD: 6 things every IT person should know ]

Hmmm. HDMI. And a Thunderbolt port. The feature set made me think this particular NUC would be an ideal platform for building a compact media streaming boxor even a full-fledged home theater PC.

Home theater PCs are often massive beasts, shipped in cases the same size as beefy A/V receivers. Those are great if you want massive amounts of storage, or want to build in a high-end 3D card for PC gaming from your couch. But to me the diminutive NUC seemed like an ideal platform for streaming video from the Internet or local server storage. And if you wanted to, I thought, you could connect a hard drive to that Thunderbolt port, enabling the NUC to act as a light-duty DVR.

The NUC is available from sites such as Amazon for about $360, stripped down (no networking, SSD or memory). Here's how I built mine into one of the smallest home theater PCs you will ever find.

Under the hood

Intel's NUC is just a little bigger than a tiny box of chocolates. It's even wrapped in Valentine's red!

Loyd Case

The NUC with Thunderbolt ships in a tiny, bright red case. Inside the tiny box is the motherboard, which features a Core i3-3217u. The 3217u is a low-voltage, mobile CPU clocking at 1.8GHz. The Core i3 CPUs don't support Turbo Boost, so that 1.8GHz is also the maximum clock speed. But the dual core 3217u does take advantage of Hyper-Threading, so it can run four threads simultaneously. However, the 3217u has a nominal TDP (thermal power rating) of just 17w, so it's very low power. The system ships with a small, 65W power brick, similar to what you might find included with an Ultrabook.


The NUC includes a 65W power adapter, but no local power cord, so you'll need to supply one.

Loyd Case

Although the clock speed and performance is lower than most desktop CPUs, one advantage of using a mobile CPU, in addition to lower power, is that all Intel mobile CPUs implement the full Intel HD 4000 GPU. That's not true with most of the lower end Ivy Bridge desktop processors, which use the cut-down HD 2500 GPU. That translates to better overall graphics performance. Of course, video decoding and encoding is handled by the highly capable fixed function video block inside the GPU, which Intel dubs "QuickSync", so video shouldn't be a problem.

Building an NUC PC

Of course, a PC needs RAM, storage, and some way to connect to the Internet. So I built a system using a 180GB mSATA SSD, Wi-Fi card, and 8GB of DDR3 memory.

The NUC itself has four ports on the rear: two USB 2.0 ports, one HDMI video output, and the Thunderbolt connector. You'll also find the power connection and a Kensington-compatible lock connector on the rear. A third USB 2.0 port is on the front. There are no analog audio connectors, so all audio output needs to be routed through the HDMI port.


Most of the ports are on the rear, shown here. The front has one USB 2.0 port.

Loyd Case

Four small screws built into the rubber feet attach the case to the base. After removing them, you lift the base off, which gives you access to the internals of the NUC. What you see are all the user-upgradable bitsSODIMM slots, full size mini-PCI Express slot with support for mSATA SSDs. Underneath that slot is a half-size mini-PCI Express slot, which can accommodate an Intel WiFi card. You'll find small screws near the two PCI Express slots. These hold down the mSATA and Wi-Fi cards, so you'll want to remove them before installing those cards.

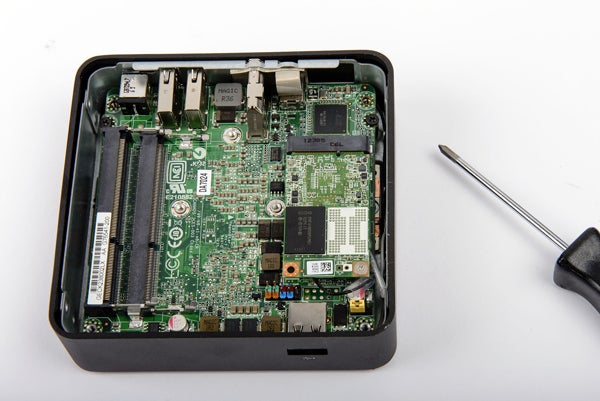

What you see after removing the bottom plate.

Loyd Case

The SSD used is an Intel 520 series, 180GB mSATA SSD. It's based on MLC (multilevel cell) technology and supports SATA 6gbps speeds. Note that you can use any mSATA card that uses full width mini PCI-Express, but you should avoid those half-width cards. Intel also supplied us with a Centrino Advanced-N 6235 Wi-Fi card, which also supports Bluetooth. As with the NUC itself, these cards are quite small.


180GB of storage and WiFi + Bluetooth in the palm of your hand

Loyd Case

You install the Wi-Fi card first, since the SSD will cover the Wi-Fi card after it's installed. Carefully align the card, so the notch aligns with the tab on the slot. The antenna wire is prerouted, so all you need do is connect the extremely small connectors to the similarly tiny connectors on the Wi-Fi card. You may want to use small needle nose pliers for this task. The card will stay at an angle away from the motherboard; a small screw will lock it down, parallel to the motherboard.


The antenna connectors for the Intel WiFi card are tiny.

Loyd Case

Once the Wi-Fi card is in, it's time to slide in the SSD. As with the Wi-Fi card, you need to align the notch with the tab. You'll want to insert the mSATA card at an angle. The card will remain at an angle to the motherboard, as the Wi-Fi card did. Intel built in a taller post with screw threads, so another small screw goes into place, and the SSD is now firmly held down.


The SSD sits on top of the Wi-Fi card.

Loyd Case

The NUC uses SODIMM slots, like those used in many laptops. Given that the system would be using Intel HD 4000 integrated graphics, I wanted as much memory bandwidth as I could find, which meant finding reliable DDR3-1600 SODIMM modules. Corsair's Vengeance 8GB kit fit the bill. You insert the first (lower module) at an angle (making sure the alignment is correct.) Then you press down towards the motherboard until the SODIMM snaps into place. Then you repeat the process with the second memory module.


Storage, Wi-Fi, and memory all installed.

Loyd Case

Attach the bottom plate with the four screws you removed earlier. Presto, you now have a working PC the size of a couple of packs of playing cards.
